HEMCO Light Duty Trailer RV Suspension Axle Parts Black Paint Leaf Spring with Bushing DE-7242

Item Code:DE-7242 Features:Quick Details Use: Trailer Parts Parts: Trailer Suspension Max Payload:1750 lbs/ 795 kgs Size:25 1/4"length, 3" arch height Place of Origin:Hebei, China Brand Name:HEMCO Product Name:RV&Trailer Leaf Spring Material:60Si2Mn/SUP7 Width:1 3/4" Numer of Leaves:4 Leaf Thickness:0.315" Capacity:3500lbs axle Type:Double Eye Surface:Painting or Dacroment Packing:Steel pallet Supply Ability:2000 Ton/Tons per Month
  • Description
Quick Details
Use:
Trailer Parts
Parts:
Trailer Suspension
Max Payload:
1750 lbs/ 795 kgs
Size:
25 1/4"length, 3" arch height
Place of Origin:
Hebei, China
Brand Name:
HEMCO
Product Name:
RV&Trailer Leaf Spring
Material:
60Si2Mn/SUP7
Width:

Numer of Leaves:
4
Leaf Thickness:

Capacity:
3500lbs axle
Type:
Double Eye
Surface:
Painting or Dacroment
Packing:
Steel pallet
Supply Ability
Supply Ability
2000 Ton/Tons per Month
Packaging & Delivery
Packaging Details
Steel pallet with plastic wrap
Port
Tianjin Xingang, Qingdao
Picture Example:
Lead Time:
Quantity(Packs) 1 - 8000 >8000
Est. Time(days) 30 To be negotiated

Product Description

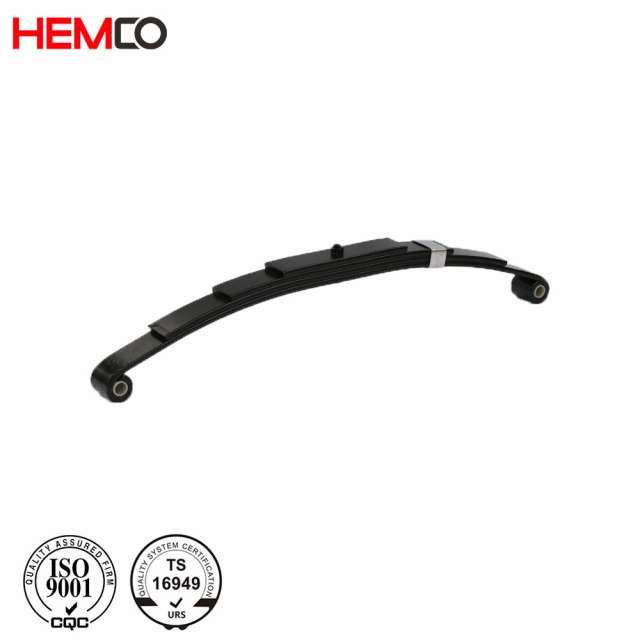

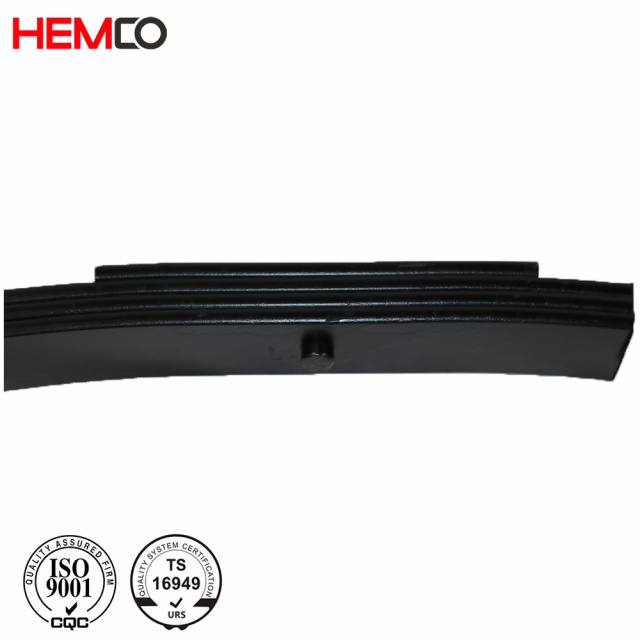

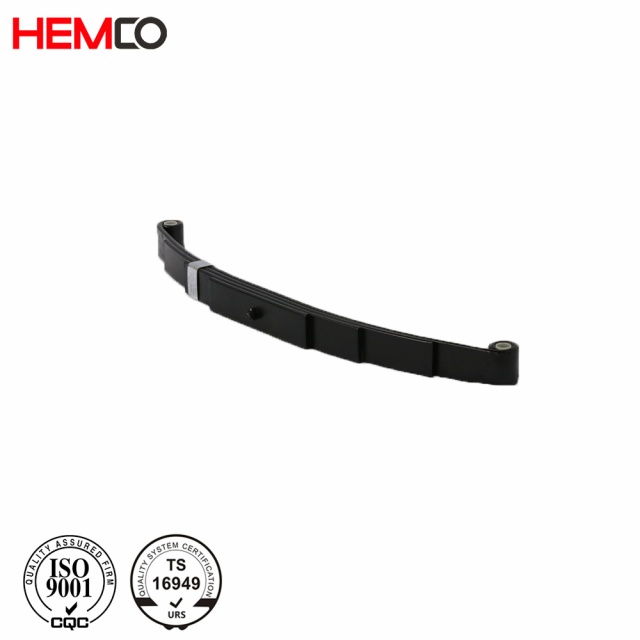

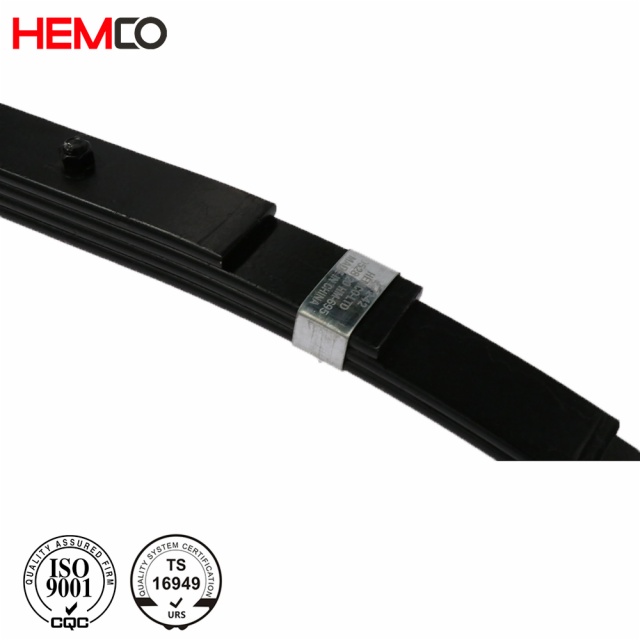

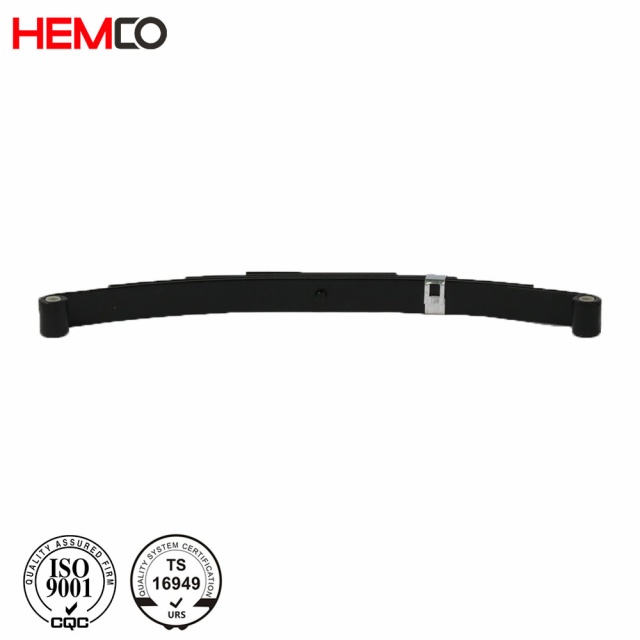

Hebei Minmetals Trailer/RV Leaf Spring - DE-7242

· Spring Length · 25 1/4 inch
· Springs Capacity · 3500 lbs
· Double Eye Springs · Hemco Auto Parts
A
320.6MM, 12 5/8"
C
641.3MM, 25 1/4"
D
76.2MM, 3"

leaf springs act as one of the suspension part of your trailer, which provide an attachment point for axles. Springs move up and down during driving to resist shock, then ensure you a smooth ride. Each spring includes bushings with 9/16" inner diameter.

* Leaf spring acts as the main suspension part of your trailer
* Provides attachment point for the wheel axle
* Multiple spring leaves offer flexibility to resist shock
* Ensure you a smooth ride on uneven and bumpy roads
* Reduces wear and tear of trailer
* Ensures level ride on bumpy and uneven surfaces
* Sturdy spring steel performance

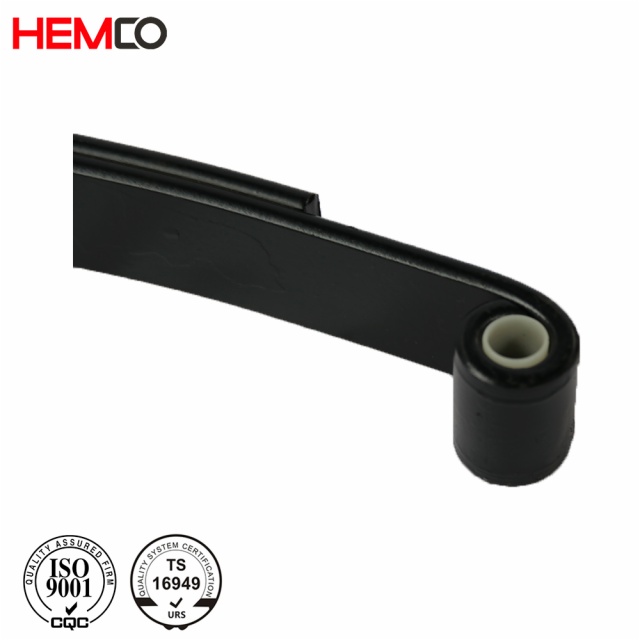

* Nylon bushings included
* Hangers, fishplates and U-bolts/ hanger kit (to be purchased separately) required for installation
* Springs are mounted on trailer frame at one end, And connects to shackle or equalizer on the other end.
Manufacturing Technique

* Samples available for customers' confirmation before bulk orders
* New designing accept for developing
* Customize logo, brand and packing offered
* Advanced lab to ensure you the best quality
* Professional export team for your shipment

Specification

Specification Chart for Main Types of Double Eye Trailer Leaf Springs


Part#
Type
Free
Length
Free
Arch
Capacity
lb
Capacity
Kg
Leaves
5155HDAC
DE
508
76.2
2000
908
3
679372
DE
632
85.7
3500
1590
6
702095
DE
641.3
76.2
2600
1180
4
702096
DE
638
79.4
3000
1362
4
72-09
DE
587
88.9
1750
795
3
72-17-2
DE
517.5
81
1000
454
2
72-18
DE
587
92
2000
908
4
72-22
DE
638
81
1250
568
3
72-34
DE
756
111
1250
567
3
72-42
DE
641.3
76.2
1750
795
4
72-73
DE
644.5
72
3000
1362
5
72-78
DE
641.3
79.4
2200
1000
4
72-79
DE
632
85.7
4000
1815
7
93183
DE
590.6
76.2
2900
1135
4
AWS-4
DE
660
108
2000
908
4
AWS-8
DE
660
108
4000
1815
8
EMCO-041
DE
508
88.9
1500
680
3
EMCO-114
DE
594
92
1500
681
4
PR427
DE
686
70
1500
681
4
PR-5
DE
641.3
76.2
3000
1360
5
SW-3
DE
641.3
76.2
1750
795
3
6B8246
DE
641.3
89
1250
568
3
Packing & Delivery

Tougher packing for the safety of your cargo.

To better ensure the safety of your goods, steel pallet with plastic wrap will be provided.
Company Profile
Certifications
FAQ
Q: Are we available to develop according to customers’ own designings?
A: Sure, we have already developed hundreds of different designs for different markets.
Q: What kinds of surface treatment we could offer?
A: Black painting and Dacroment are all accepted.
Q: What’s your factory’s productivity?
A: Our factory has a maximum year capacity as 20,000 metric ton.
